Hi all looking for some advice.
After a kitchen renovation i need to re place some sensors. The panel is a sw 8/12.
some of the old sensors were Aritech so decided go for new HKC ones. These will be on one zone.

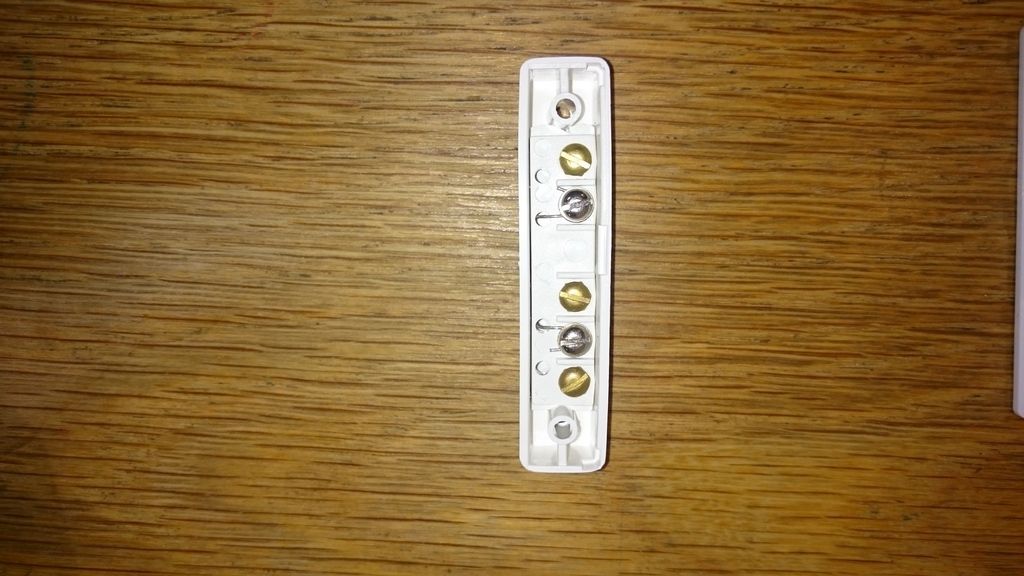

http://i1204.photobucket.com/albums/bb401/JABKELL/DSC_00091_zpsbzluyz4c.jpg

http://i1204.photobucket.com/albums/bb401/JABKELL/DSC_00061_zpsthbx3pxo.jpg

http://i1204.photobucket.com/albums/bb401/JABKELL/DSC_00081_zpsxn8hxytx.jpg

JABKELL

I'm using Black, red , yellow and blue wires.

KoolKid

Is there loops at some of the sensors and contacts. Ie 2reds 2 blacks etc

KoolKid

Is there loops at some of the sensors and contacts. Ie 2reds 2 blacks etc

JABKELL

Yes ,there is two reds and two blacks at some sensors.

KoolKid

Excuse the rough drawing. But this should do it. Taking Red/Black as the zone & Blue/Yellow as the tamper.

JABKELL

Thanks, I try this tomorrow.

JABKELL

KOOLKID, would i be right in there's no resistors needed on this line/zone ?
I'm not bothered about the tamper on the sensors, so does tha eliminate the blue and yellow wires ?
Is no.1 at the shock part of the sensor or the other end ? or does it matter if I wire into 1+2 or 5+6 ?
I was thinking it would come from the panel into 1+2 of the first sensor then from 5+6 into 1+2 of the next and so on ?

KoolKid

I'm presuming no resistors.
If you are leaving the tamper out that pair will have to be closed off at the first device or in the panel.
You can count the sensor numbers from either end it doesn't matter
The connections on those sensors are as follows:
1 & 6 Contact (reed) or spare
2 & 5 Shock Sensor
3 & 4 Tamper.

LugsB

KoolKid wrote: »

I'm presuming no resistors.
If you are leaving the tamper out that pair will have to be closed off at the first device or in the panel.
You can count the sensor numbers from either end it doesn't matter
The connections on those sensors are as follows:
1 & 6 Contact (reed) or spare
2 & 5 Shock Sensor
3 & 4 Tamper.

Hi Koolkid - Would you know how to go about wiring HKC shock sensors to a Honeywell Accenta G4 panel?

I have wired up (with 6 core) door contacts, 3 x PIRs, external sounder, and control panel. All are wired correctly and functioning as desired on a walk test.

There are some HKC sensors that I would like to connect, and they have terminals for alarm and sensor. The reed/spare is for the magnet, but I am wondering if these can be connected to a standard Accenta G4 panel? Or do you know if I need an 'Analyser board' for the Accenta G4 so the HKC inertia sensors can function with contact and shock features?

I read here that I need that add-on board? http://www.boards.ie/vbulletin/showthread.php?p=72127829

KoolKid

Yes, I don't think the zone inputs on that panel are analysed.

LugsB

KoolKid wrote: »

Yes, I don't think the zone inputs on that panel are analysed.

Hi - I don't suppose you'd know what I would need to order?!

KoolKid

There are a few different analyer boards that would do. You could try REW I know they were getting somesome type in for the Risco systems.

LugsB

KoolKid wrote: »

There are a few different analyer boards that would do. You could try REW I know they were getting somesome type in forfor the Risco systems.

Thanks for that, appreciate it.

LugsB

KoolKid wrote: »

Excuse the rough drawing. But this should do it. Taking Red/Black as the zone & Blue/Yellow as the tamper.

Hi Koolkid - Could I ask you how you would wire two HKC shock sensors in one zone please?

I am using blue/white for zone and green/yellow for tamper. They are going into an Accenta G4 panel which can't handle the inertia/shock signals without an analyser board, so am just using the contacts on them.

Any chance you could draw up a diagram like this one please?!

KoolKid

Here you go.

LugsB

KoolKid wrote: »

Here you go.

Thank you very much, you are a gentleman!

comerboy

Hi guys just wondering if anyone could help me on connections for hkc inertia sensor with reed switch. I have 5 of them in series. Also do I need to connect them in as a single eol or dual eol or non eol. The panel is a hkc1070. Thanks in advance.

KoolKid

Hi you could use the diagram above to wire them non EOL would be the easiest.
Just swap the colours for the pairs you are using for alarm & tamper circuits.

comerboy

Thanks what's the purpose of resistors? I can kinda figure out 1 or 2 sensors but when I add in 5 it confuses me completely 🙈

KoolKid

The resistors are used so a short in the middle of a loop would be detected and would not prevent devices from working.

altor

comerboy wrote: »

Thanks what's the purpose of resistors? I can kinda figure out 1 or 2 sensors but when I add in 5 it confuses me completely 🙈

Lots of diagrams in this thread that will help.
