Horizon

kajo

Hi Guys,

I have an old Horizon alarm that works just fine other than the outside bell box with sab needs replacing.
I am not sure if I can just replace it with a modern bell box or if that will come with an sab or if I even need the sab.
I was thinking something like this Pyronix DELTABELL X LightBox, Anti-Tamper, Wall Mounted, Flashing LED, Strobe, with PCB Module.
Would you lads know where in Dublin I can buy that or if it would be a straight replacement.

Any advice would be great thanks.

Kajo

KoolKid

If you have 4 or more connections between the panel & the external bell then that would be no problem.
Mercury Distribution
RWL
Northwood technology all sell the Delta Bells.

Drifter50

The HKC SABB is another option. Looks a bit better on the front of your house

You`ll get one in Eurosales, Kelliher Electrical, some others

kajo

Thanks guys,

I think 4 wires do I need to use the sab unit?



https://s18.postimg.cc/fgomwb7o9/pic1.jpg

https://s18.postimg.cc/j0akm72p5/pic2.jpg

KoolKid

Bell + & Bell -
BHO and permanent - can be common
Bell + can be permanent +
You can share bell - with strobe -

kajo

Thank you lads your help was much appreciated.

KoolKid

Your welcome. Did you get sorted with a Delta Bell.

kajo

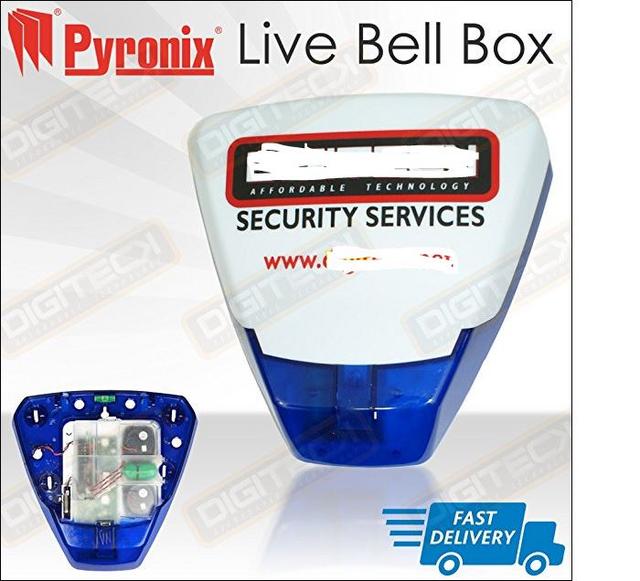

Not yet KoolKid I was looking at some on amazon and ebay https://s18.postimg.cc/5d5vzqd1l/alarm2.jpg
I like the idea of a logo on the box and the backlight might help keep the nasty boys away.

kajo

Lads just got my hands on the new bell box and I found what I think is the old wiring diagram for thecurrent alarm / bell box.

https://s18.postimg.cc/u5chl25zd/20180430_154817.jpg

New bell box layout https://s18.postimg.cc/xxren06dl/20180430_150315.jpg
I see a few jumpers in the pyronix not sure if I have to move them or not and it also came with a resistor again not sure if I need to use that.

Can any of you lads do a diagram to wire this new box?

Much thanks,

Kajo

KoolKid

Using the colours as they are in the panel wire at the delta bell as follows

Yellow to bottom T on Delta bell (keep existing resistor in place)
Red to Aux + on Delta bell
Black to Bell & loop onto STB
Blue to Aux - & loop to top T on Delta Bell
The only jumper to move is battery onto INT

If you have any problems come back to me.

kajo

Great will give it a go as soon as I can get the old one down https://s18.postimg.cc/tu8tdmwah/20180430_192922.jpg
Thanks again KoolKid I will be glad to see the old one gone it was never any trouble just ugly and even more so when the builders left it like that.

kajo

Just wanted to say thank you again KoolKid your instructions seem to have worked out perfect.
Everything is working including the backlight and led and the sounders I am delighted.
Much thanks for giving me and all of us here your expertise you guys are great.

https://s7.postimg.cc/62ccrwh9n/20180504_153235.jpg

KoolKid

Your welcome.
